    Sectional Overhead Doors

    Sectional overhead doors ideal for loading bays and warehouse entrances. Fast operation and reliable.

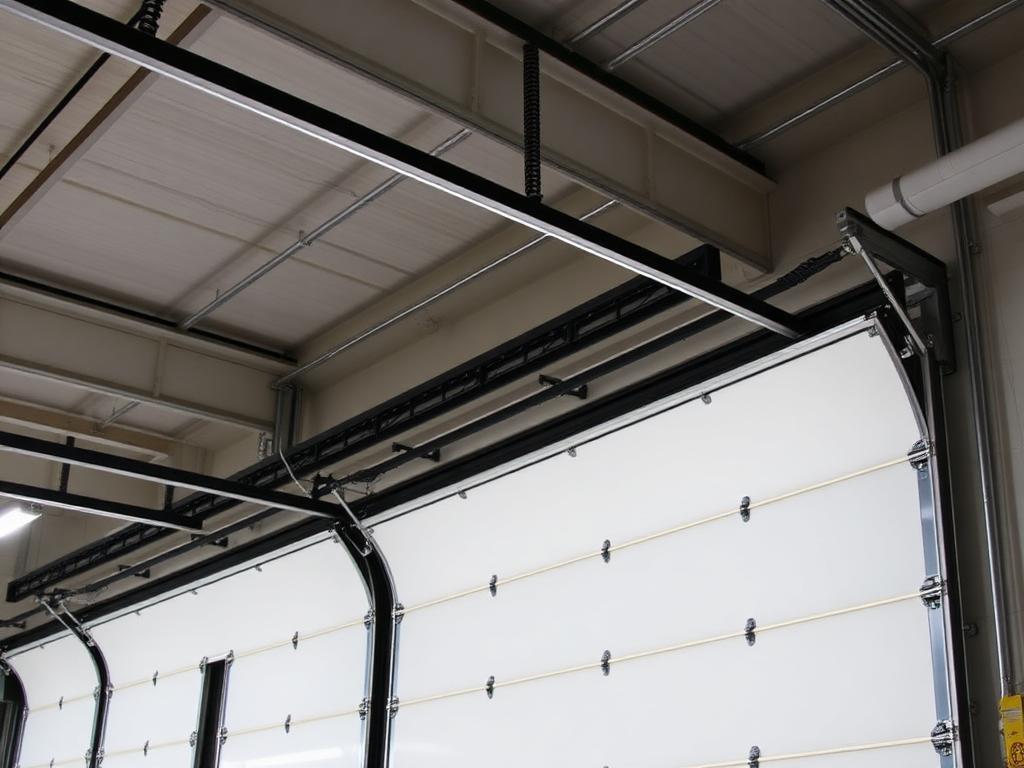

    Sectional Overhead Doors - Image 1Sectional Overhead Doors - Image 2Sectional Overhead Doors - Image 3

    About Sectional Overhead Doors

    Sectional overhead doors offer excellent thermal insulation and are ideal for premises where space is at a premium. The vertical opening action maximises internal and external floor space, making them perfect for loading bays and industrial units.

    Unlike roller shutters that coil into a drum, sectional doors track vertically then horizontally under the ceiling, allowing the full door height to be utilised without the barrel housing above the opening. This makes them particularly suitable for openings with limited headroom.

    Our sectional doors are available with various track configurations to suit your building layout. Whether you have standard headroom, reduced space, or require vertical lift operation, we can configure a solution that maximises your usable space.

    Sectional Doors Technical Specifications

    Maximum WidthUp to 10 metres
    Maximum HeightUp to 8 metres
    Panel Thickness40mm or 67mm insulated
    U-ValueFrom 0.5 W/m²K
    OperationManual, Chain, or Electric
    Opening Speed0.2 - 0.5 m/s
    Track ConfigurationStandard, High, or Vertical lift
    Warranty12 months parts and labour

    Key Sectional Doors Features

    • Vertical Opening
    • Excellent Insulation
    • Weather Sealed
    • Manual & Electric Options
    • Dock Leveller Compatible

    Typical Sectional Doors Applications

    Loading Bays
    Warehouses
    Distribution Centres
    Vehicle Workshops
    Agricultural Buildings
    Industrial Units

    Ready to Get Started?

    Contact us today for a free, no-obligation quote on your industrial door requirements.
